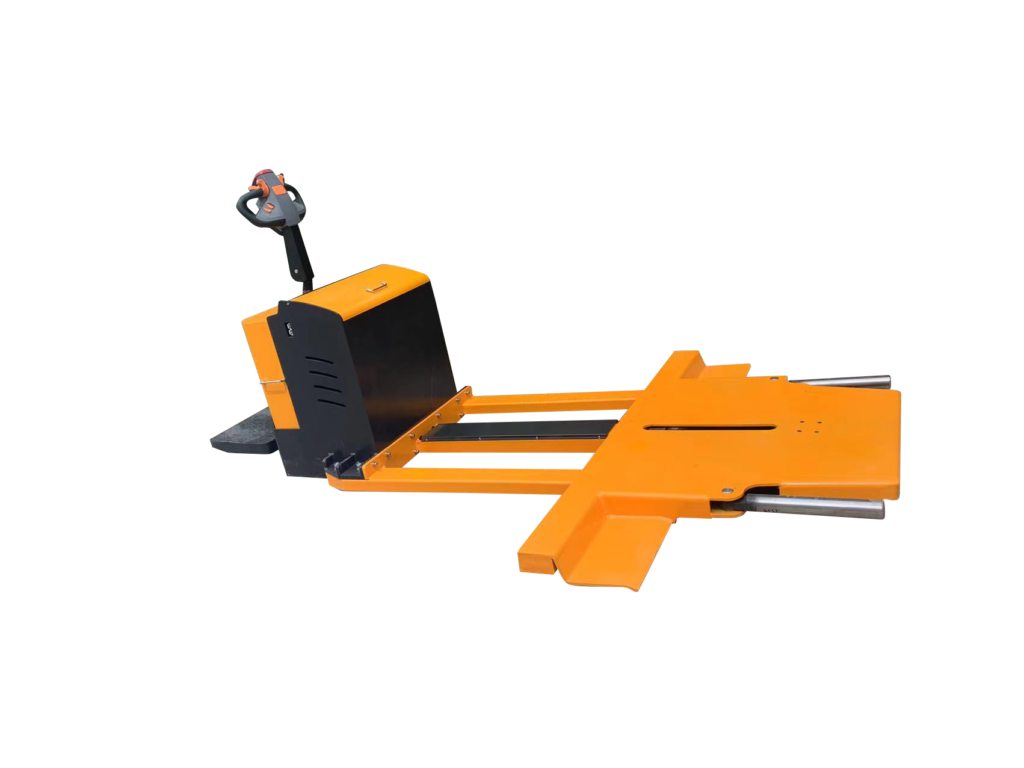

AutoMoverBot semi-automatic Car Mover Ai Autonomous Mobile Robot
TECHNOLOGIES OF ROBOTS
-
Dimensions 2.1 by 1.1 by 0.115m
-
Weight 500kg Robot
-
Maximum Load 3.0T Car weight
-
Maximum Car Width 2.05m Excluding Mirror
-
Maximum car length 5.5m (Turbo: Front overhang or rear overhang less than 125cm)
-
Minimum Wheelbase 1.3m
-
Minimum Ground Clearance 11.5cm
-
Clear Width 120cm
-
Minimum Wheelbase 1.3m
-
Climbing Capacity 4.18%
-
Maximum Speed 1m/s
-
Telecom Wifi
-
Road Planeness plus/minus 20mm/m2 m2
-
Working Hours 4hours
Vehicle mover Machinery AMB 2.5ton (2500kg) and AMB 3.5tons (3500kg)
TECHNOLOGIES OF CAR MOVER
- Battery: 2x12V /210AH
- Charger 24V/30A
- Driving Motor DC24V/1500W
-
Lifting Motor 24V/2000W
-
Materials Steel Panel 6mm
-
Battery Power Indicator YES
-
Driving Wheel PU
-
Driving Speed 0-6.5Km/h E-CVT
-
Lifting Height 115mm
-
Braking Type ElectroMagnetic Braking
-
Street Request 2000mm Can Move Forward and Backward
-
Packing Size 2wooden Carton 2.3 x 2 x 0.3m and 1x 0.8 x 1.45m
-
Weight 800/900kg
-
Loading Qty 20/40′ Container: 18sets/36sets
